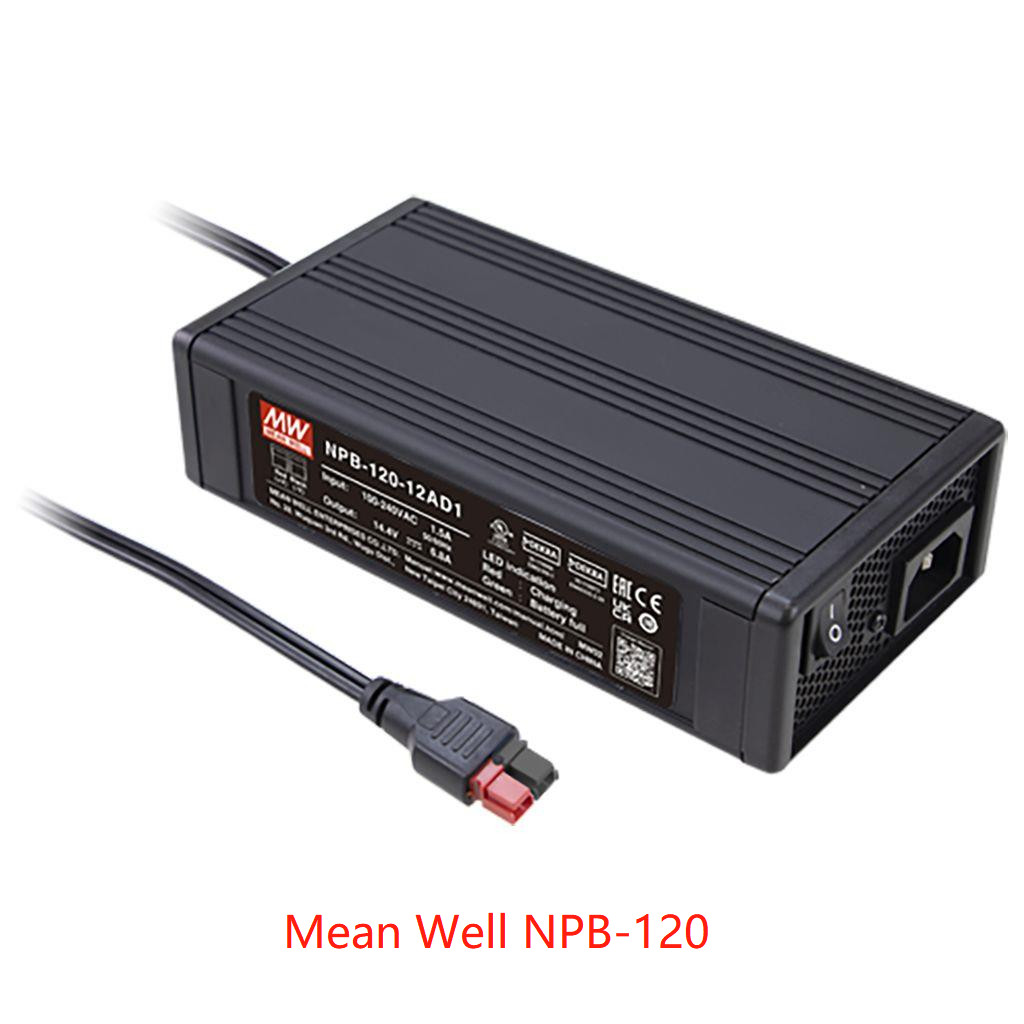

Mean Well Portable Type Metal Enclosure Charger NPB-120-12 NPB-120-24 NPB-120-48
Model
New models:
NPB-120 / NPB-240 / NPB-360
Old models:
PA-120 / PB-120
Features :
Standard type highly reliable wide voltage range charger
Metal enclosure for better heat dissipation , leading lower touch temperature
Easy and flexible adjustment:
‧ Charging voltage adjustable through front panel (10.5~15.2V, 21~30.4V, 42~60.8V)
‧ Charging current adjustable through panel (50~100% of rated current)
‧ 2 or 3 stage selectable by DIP S.W. on front panel
Protections: Short circuit, over voltage, over temperature, battery reverse polarity
Comply with UL/EN62368-1 and IEC60335-1/2-29 dual certifications
Multiple DC output plugs selectable: Anderson, terminal block and 4 pin power pin
Technical
| MODEL | NPB-120-12 | NPB-120-24 | NPB-120-48 |
| =XLR, AD1, TB |
|
OUTPUT | BOOST CHARGE VOLTAGE(Vboost)(default) | 14.4V | 28.8V | 57.6V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | 27.6V | 55.2V |
| VOLTAGE ADJUSTABLE RANGE | 10.5 ~ 15.2V | 21 ~ 30.4V | 42 ~ 60.8V |
| OUTPUT CURRENT(Typ.) Note.5 | 6.8A | 4A | 2A |
| CURRENT ADJUSTABLE RANGE | 50% ~ 100% |
| MAX. POWER Note.3 | 103.4W | 121.6W | 121.6W |
| RECOMMENDED BATTERY CAPACITY (AMP HOURS) Note.4 | 20 ~ 90AH | 15 ~ 50AH | 7 ~ 25AH |
|
INPUT | VOLTAGE RANGE Note.5 | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.92/230VAC@12V,PF>0.93/230VAC@24/48V at full load |
|
EFFICIENCY (Typ.) | XLR | 86.5% | 89% | 90.5% |
| AD1 | 86.5% | 89% | 90.5% |
| TB | 87% | 89.5% | 90.5% |
| AC CURRENT (Typ.) | 1.5A/115VAC 0.8A/230VAC |
| INRUSH CURRENT (Typ.) | COLD START 55A at 230VAC |
|
PROTECTION | SHORT CIRCUIT Note.6 | Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover |
| OVER VOLTAGE | 16 ~ 20V | 32 ~ 40V | 64 ~ 75V |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover |
| REVERSE POLARITY | By internal fuse open |
| OVER TEMPERATURE | Hiccup mode, recovers automatically after temperature goes down |
| FUNCTION | CHARGING CURVE | 2 or 3 stage adjustable by DIP S.W |
|
ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 45℃) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
SAFETY & EMC (Note 7) | SAFETY STANDARDS | CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
|
EMC EMISSION | Parameter | Standard | Test Level / Note |
| Conducted | BS EN/EN55032 (CISPR32),BS EN/EN55014-1 | Class B |
| Radiated | BS EN/EN55032 (CISPR32),BS EN/EN55014-1 | Class B |
| Harmonic Current | BS EN/EN61000-3-2 | Class A |
| Voltage Flicker | BS EN/EN61000-3-3 | ----- |
|
EMC IMMUNITY | BS EN/EN55014-2,BS EN/EN55024,BS EN/EN55035 |
| Parameter | Standard | Test Level / Note |
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact |
| Radiated | BS EN/EN61000-4-3 | Level 2, 3V/m |
| EFT / Burst | BS EN/EN61000-4-4 | Level 2, 1KV |
| Surge | BS EN/EN61000-4-5 | Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth |
| Conducted | BS EN/EN61000-4-6 | Level 2, 3Vrms |
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m |
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|
OTHERS | MTBF | 1895.4K hrs min. Telcordia TR/SR-332 (Bellcore) ; 225.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 182.7*96*49mm (L*W*H) |
| PACKING | 1.3Kg; 10pcs/ 14Kg / 1.13CUFT |
|
NOTE | 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 3. Refer to derating curve. 4. This is MEAN WELL's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation. 5. Derating may be needed under low input voltages. Please check the derating curve for more details. 6. This protection mechanism is specified for the case the short circuit occurs after the charger is turned on. 7. The charger is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com) ※ Product Liability Disclaimer:For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx |
