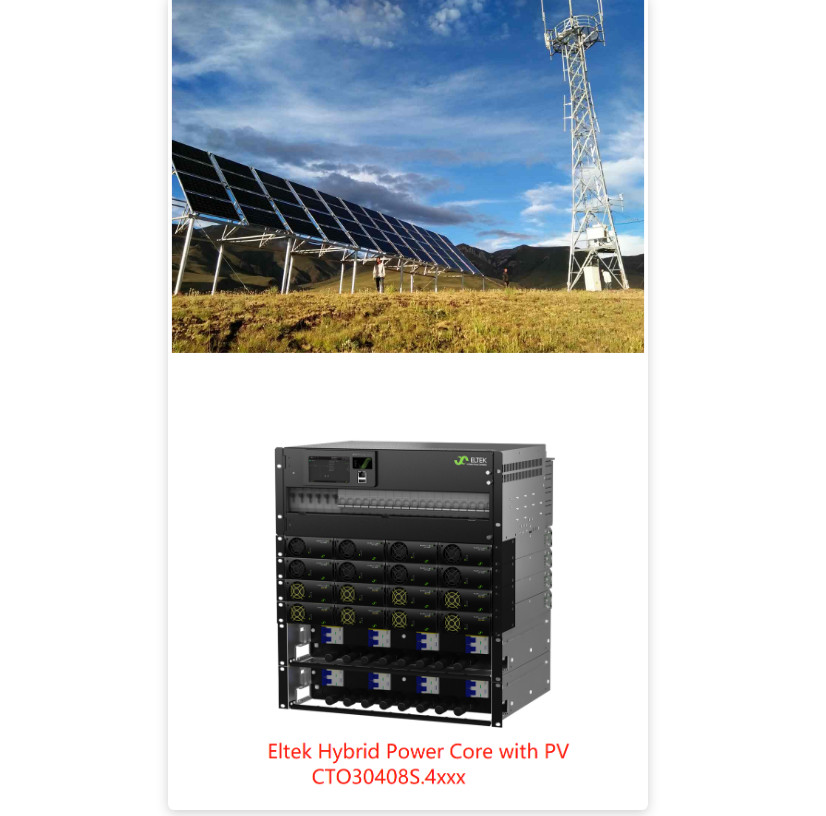

Eltek's Hybrid power core is a complete and flexible power management system that is based on the Flatpack2 product family.
It uses a single Smartpack2 controller to monitor the flow, storage, and generation from different energy sources.
The power core is integrated with features such as battery distribution, DC load distribution, rectifiers, and solar chargers,
with a PV connection panel. It is built with versatility in mind, making it easy to expand and upgrade to accommodate changing
demands.
A typical hybrid site will rely on PV panels as well as mains connection and gen-set to power all operations inexpensively,
reliably, and sustainably.
Flatpack2 – Solar Autonomous power core DC Power supply system, 300A-500A 4U Distribution
| MODEL | 300ADISTRIBUTION | 500ADISTRIBUTION |
| | | CTO30408S.4xxx | CTO308xxS.4xxx | |
| INPUDA DATA (SOLAR) | | |
| | Voltage(range) | 85-420VDC(operatingrange)/100-380VDC(MPPTrange) | |
| | Voltage(start-up) | 150VDC | |
| | Maximumcurrent | 20ADC | |
| PVCONNECTIONPANEL | |
| ServiceswitchesforPVarrays | 4pcs2-pole | 4or8pcs2-pole | |
| | DCSPDType2(option) | Upto4pcs | Upto8pcs | |
| OUTPUTDATA | |
| | Voltage | -48VDC | -48VDC | |
| | Current(maximum) | 300A | 500A | |
| BATTERYDISTRIBUTION | |
| | Numberofbreakerpositions | 6x(singlepole) | 8x(singlepole) | |
| | LVBD | 300A | 500A | |
| | Batterybreakertype | Plug-intype(D-frame) | |
| LOADDISTRIBUTION | |
| | Numberofloadpositions | Upto18x18mmUpto16x18mm | |
| LVLD1 | 300A(max12x18mmor4x27mm+300A(max10x18mmor4x27mm+ |
